Our family business is pleased to be at your disposal with competence and experience as a reliable partner.
our range
- reliability
- high quality
- short-term delivery dates
- fair prices
- made in Germany
Experience & competence
For almost 30 years we have been manufacturing fabric compensators - exclusively in Germany. Our products have been successfully used in the automotive, chemical, pharmaceutical and ceramics industries for many years.
NEW: Our WHF office in China
WHF - China
c/o Seidel Industrial Equipment Co., Ltd
C1 No 1000 Jiu Jing Road Jiu Ting County Songijang District, 201615 Shanghai, China
+86 21 37021776
E-Mail WHF China
WHF - China
c/o Seidel Industrial Equipment Co., Ltd
C1 No 1000 Jiu Jing Road Jiu Ting County Songijang District, 201615 Shanghai, China
+86 21 37021776
E-Mail WHF China
Flexible production for a wide variety of applications
Soft material compensators from WHF are made up of different layers. The composition of the layers and the respective materials used make it possible to adapt the compensators to a wide variety of requirements. Our expansion joints are suitable for gaseous media (eg fresh air, exhaust air, flue gas) with temperatures of up to 900 degrees C, for media containing solvents, acids or alkalis as well as for media with solids content.
High quality and customer satisfaction is very important to us!
The compensators are handcrafted by our trained and experienced team. Both the joints of the layers and the edges are carefully sewn. Sewing the edges instead of mere gluing ensures a longer service life and makes it possible to install and remove our compensators several times, eg as part of maintenance or repair work.
In the high temperature range, we use special threads to ensure the longest possible heat resistance of our products. EPDM sealing layers are vulcanised, sealing films are welded.

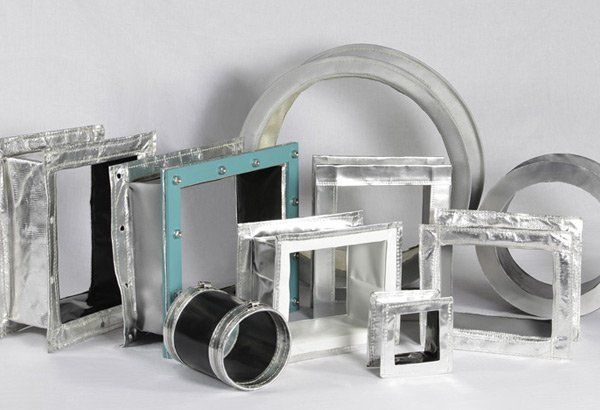

Excerpt from our product range:
EPDM (ethylene-propylene-diene rubber)
is a thermoplastic elastomer. The material is highly resistant to acids, lyes, water vapor, animal and vegetable fats and fuel. It is UV, ozone, aging and weather resistant, antistatic and electrically conductive.
EPDM can be used for media in the temperature range of - 40 ºC to 140 ºC and short term up to 150 ºC. It is suitable for pressures up to 50,000 Pascal.
EPDM can be used for media in the temperature range of - 40 ºC to 140 ºC and short term up to 150 ºC. It is suitable for pressures up to 50,000 Pascal.
Insulated compensators for the high temperature range
Insulated compensators consist of a multi-layer outer construction with inner insulation 20, 50, 100 mm thick ceramic fiber. Depending on the application, a highly heat-resistant micro-stainless steel mesh or a silicon oxide fiber fabric is used for the innermost layer.
The advantages of these compensators are high elasticity, no condensation, thermal and sound insulation. They are resistant to aging, electrically conductive and silicone-free. The max. Operating temperature is 750 ° C, briefly up to 800 ° C.
The advantages of these compensators are high elasticity, no condensation, thermal and sound insulation. They are resistant to aging, electrically conductive and silicone-free. The max. Operating temperature is 750 ° C, briefly up to 800 ° C.
Compensators for the food industry
With wetted layer of food-grade PTFE (light with FDA approval), by selecting the outer layers also antistatic possible.
